Acquire Digital Data Using an External Clock

This example shows how to acquire digital data in the foreground by using an external scan clock.

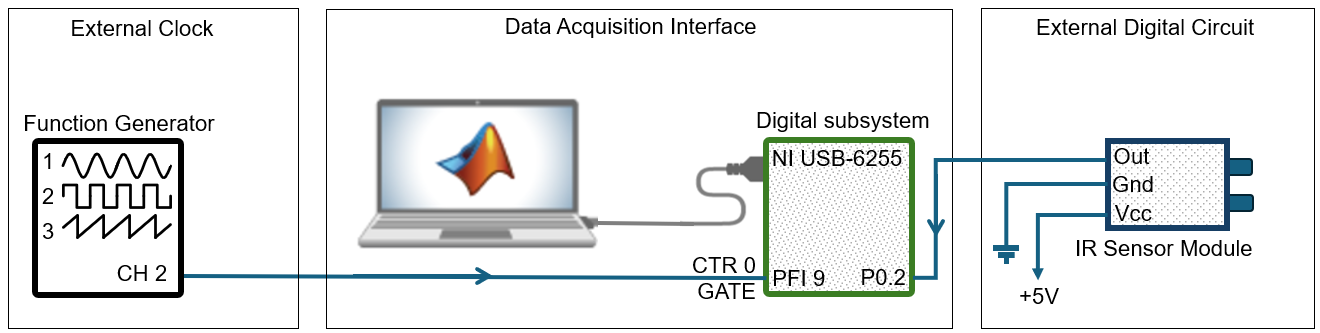

You can use a function generator or the on-board clock from a digital circuit. Here, a function generator is physically wired to terminal PFI9 on device NI 6255.

Create a DataAcquisition object and add a output line at port 0 line 2 on Dev1.

d = daq("ni");
ch = addinput(d,"Dev1","Port0/Line2","Digital")
ch =

    Index    Type     Device       Channel       Measurement Type    Range          Name
    _____    _____    ______    _____________    ________________    _____   __________________

      1      "dio"    "Dev1"    "port0/line2"      "InputOnly"      "n/a"    "Dev1_port0/line2"


Not all devices support clocked digital I/O operations with hardware timing. For these devices you can use software timed operations with single scan calls to read and write.

Devices that support clocked digital I/O operations might not support them on all ports. Check your device specifications.

Set the rate of your DataAcquisition to the expected rate of your external scan clock.

d.Rate = 1000;


Importing an external clock does not automatically set the scan rate of your DataAcquisition. Manually set the DataAcquisition Rate property value to match the expected external clock frequency.

Programmatically add a scan clock to your DataAcquisition, indicating the source as external and the target as device terminal PFI9.

clk = addclock(d,"ScanClock","External","Dev1/PFI9")
clk =

  Clock with properties:

         Source: 'External'
    Destination: 'Dev1/PFI9'
           Type: ScanClock

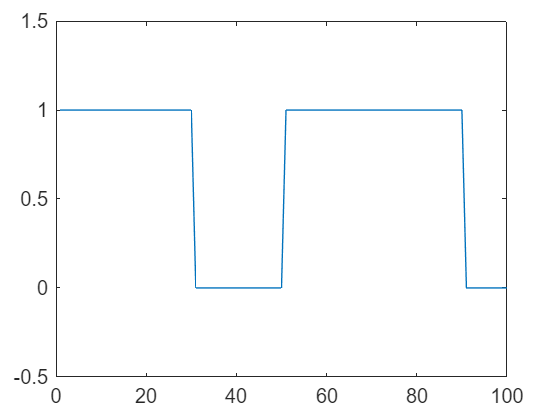

Acquire clocked digital data and plot it.

dataIn = read(d,seconds(1),"OutputFormat","Matrix");
