Fast R-CNN オブジェクト検出ネットワークの作成
この例は、上記のR-CNN オブジェクト検出ネットワークの作成の例に基づいています。ROI プーリング層と境界ボックス回帰層を追加して、事前学習済みの ResNet-50 ネットワークを Fast R-CNN オブジェクト検出ネットワークに変換します。その後、Fast R-CNN ネットワークは、trainFastRCNNObjectDetector
を使用して学習させることができます。
R-CNN ネットワークの作成
まず、Fast R-CNN の基礎となる R-CNN ネットワークを作成します。R-CNN オブジェクト検出ネットワークの作成の例で、このコード セクションを詳細に説明しています。
% Load pretrained ResNet-50. net = resnet50; lgraph = layerGraph(net); % Remove the the last 3 layers from ResNet-50. layersToRemove = { 'fc1000' 'fc1000_softmax' 'ClassificationLayer_fc1000' }; lgraph = removeLayers(lgraph, layersToRemove); % Specify the number of classes the network should classify. numClasses = 2; numClassesPlusBackground = numClasses + 1; % Define new classification layers. newLayers = [ fullyConnectedLayer(numClassesPlusBackground, 'Name', 'rcnnFC') softmaxLayer('Name', 'rcnnSoftmax') classificationLayer('Name', 'rcnnClassification') ]; % Add new layers. lgraph = addLayers(lgraph, newLayers); % Connect the new layers to the network. lgraph = connectLayers(lgraph, 'avg_pool', 'rcnnFC');
境界ボックス回帰層の追加
領域提案ボックスに適用する一連のボックス オフセットを学習するためのボックス回帰層を追加します。学習したオフセットによって、領域提案ボックスが元のグラウンド トゥルース境界ボックスに近くなるように変換されます。この変換により、Fast R-CNN の位置推定パフォーマンスが向上します。
ボックス回帰層は、全結合層とその後に続く R-CNN ボックス回帰層で構成されます。全結合層は、各クラスに対して、4 つのボックス オフセットのセットを出力するように設定されています。背景クラスは、背景境界ボックスが調整されていないため、除外されます。
% Define the number of outputs of the fully connected layer. numOutputs = 4 * numClasses; % Create the box regression layers. boxRegressionLayers = [ fullyConnectedLayer(numOutputs,'Name','rcnnBoxFC') rcnnBoxRegressionLayer('Name','rcnnBoxDeltas') ]; % Add the layers to the network lgraph = addLayers(lgraph, boxRegressionLayers);
ボックス回帰層は通常、分類分岐が結合されているのと同じ層に結合されます。

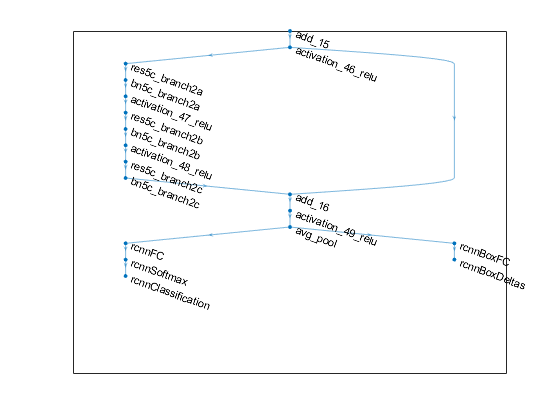

% Connect the regression layers to the layer named 'avg_pool'. lgraph = connectLayers(lgraph,'avg_pool','rcnnBoxFC'); % Display the classification and regression branches of Fast R-CNN. figure plot(lgraph) ylim([-5 16])
ROI の最大プーリング層の追加
次の手順は、特徴抽出層として使用するネットワークの層を選択することです。この層は、プリーングされた領域の分類のために特徴量をプーリングする ROI の最大プーリング層に結合します。特徴抽出層の選択には、実証的評価が必要です。ResNet-50 の場合、一般的な特徴抽出層は、畳み込みの 4 番目のブロックの出力です。これは、activation40_relu という名前の層に対応します。
featureExtractionLayer = 'activation_40_relu';
figure
plot(lgraph)

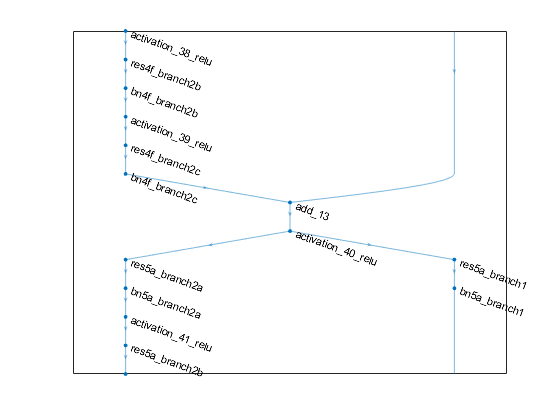

ylim([30 42])
ROI 最大プーリング層を挿入するには、まず、特徴抽出層に結合されている層 res5a_branch2a および res5a_branch1 を切り離します。
% Disconnect the layers attached to the selected feature extraction layer. lgraph = disconnectLayers(lgraph, featureExtractionLayer,'res5a_branch2a'); lgraph = disconnectLayers(lgraph, featureExtractionLayer,'res5a_branch1'); % Add ROI max pooling layer. outputSize = [14 14]
outputSize = 1×2
14 14

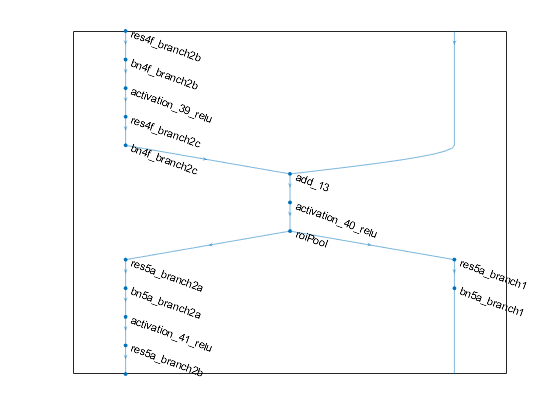

roiPool = roiMaxPooling2dLayer(outputSize,'Name','roiPool'); lgraph = addLayers(lgraph, roiPool); % Connect feature extraction layer to ROI max pooling layer. lgraph = connectLayers(lgraph, 'activation_40_relu','roiPool/in'); % Connect the output of ROI max pool to the disconnected layers from above. lgraph = connectLayers(lgraph, 'roiPool','res5a_branch2a'); lgraph = connectLayers(lgraph, 'roiPool','res5a_branch1'); % Show the result after adding and connecting the ROI max pooling layer. figure plot(lgraph) ylim([30 42])
最後に、ROI 入力層を ROI 最大プーリング層の 2 番目の入力に結合します。
% Add ROI input layer. roiInput = roiInputLayer('Name','roiInput'); lgraph = addLayers(lgraph, roiInput); % Connect ROI input layer to the 'roi' input of the ROI max pooling layer. lgraph = connectLayers(lgraph, 'roiInput','roiPool/roi'); % Show the resulting faster adding and connecting the ROI input layer. figure plot(lgraph) ylim([30 42])
これで、trainFastRCNNObjectDetector
を使用してネットワークに学習させる準備が整いました。
