Video Creator

Create and configure videos of multibody animations

Description

The Video Creator tool creates and configures videos for the animations of the multibody systems in the Multibody Explorer tool. Use the Video Creator tool to specify the video playback speed, frame rate, video format, and frame size.

Open the Video Creator

In the Multibody Explorer toolstrip, in the Apps tab, click Video Creator .

Examples

Create Video

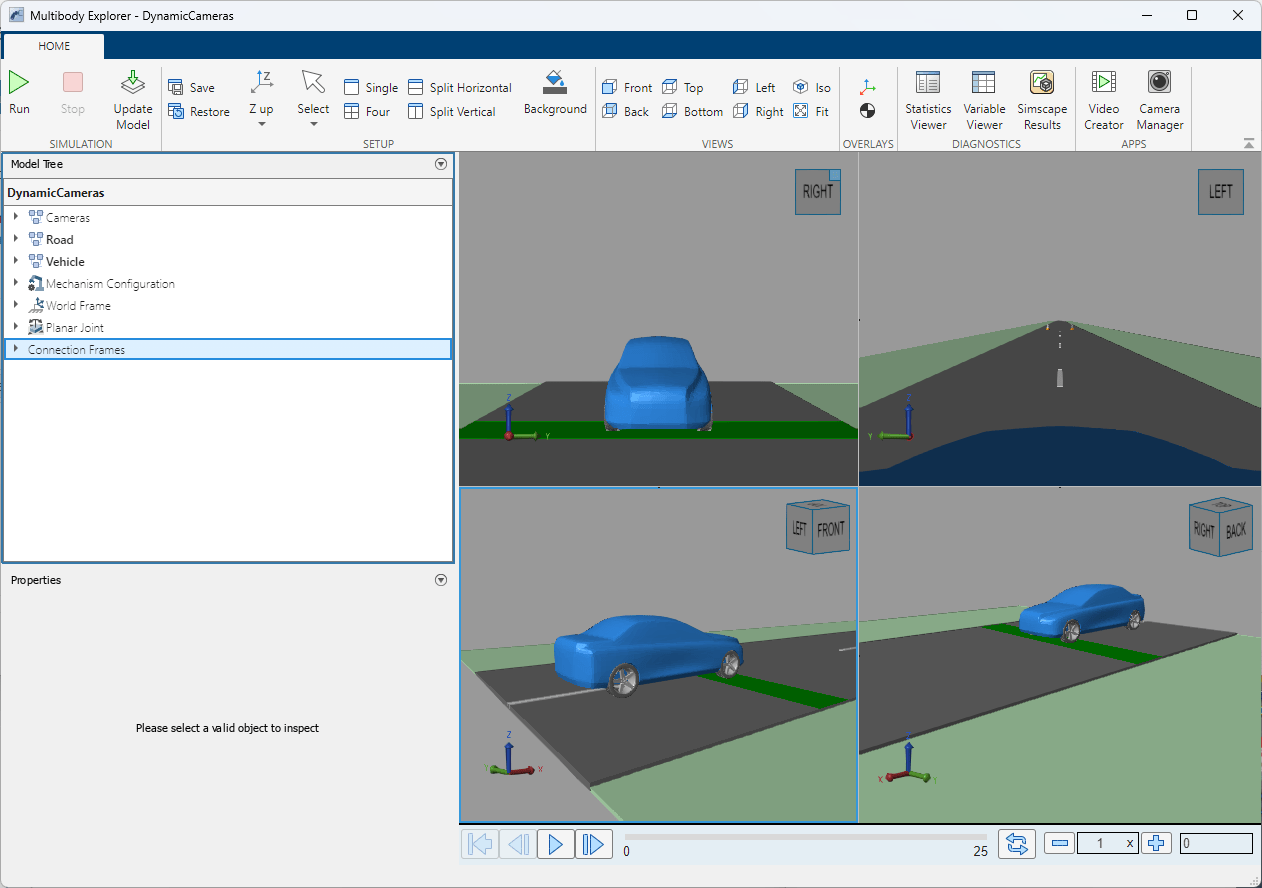

This example shows how to create and configure a video of an animation of a multibody model. The video captures four different views of the vehicle while driving.

Open the example and run the DynamicCameras.slx model.

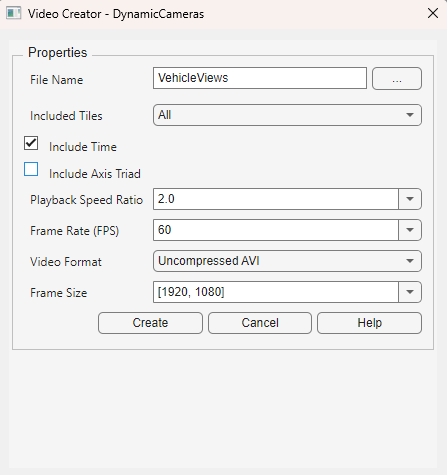

To create the video, open the Video Creator and follow these steps:

• To define the video name, in the File Name field, enter VehicleViews.

• To include four views of the model, for the Included Tiles parameter, choose All.

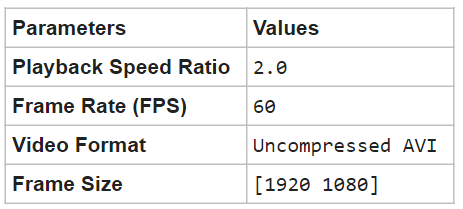

• To ensure the parameters match the settings in the image, configure the video using the settings in this table:

• To create a video of the animation, click the Create button. The tool saves the video in the current working folder.

Parameters

File Name — Video name

no default

Name of the video to create. The tool saves the video the current working folder.

Included Tiles — Tile to include in video

All (default) | Selected

Tiles to include in the video. Select All to include all the tiles in the visualization pane. Select Selected to include only the selected tile in the video.

Include Time — Whether to show playback time

on (default) | off

Select Include Time to show the playback time in the created video.

Include Axis Triad — Whether to show axis triad

off (default) | on

Select Include Axis Triad to show the axis triad in the created video.

Playback Speed Ratio — Video playback speed relative to real time

1.0 (default) | 0.25 | 0.5 | 2.0 | 4.0 | 8.0

Video playback speed relative to real time. The video plays faster than real time at values greater than 1.0 and slower at values smaller than 1.0. For example, a ratio of 2.0 doubles the playback speed, while a ratio of 0.5 halves it.

Frame Rate (FPS) — Number of video frames per second

30 (default) | 16 | 24 | 60

Number of video frames per second of playback time. Higher frame rates result in smoother video playback time, but also larger file sizes.

Video Format — Video file format

Uncompressed AVI (default) | Archival | Motion JPEG 2000 | Motion JPEG AVI | MPEG-4

File format to save the video in. The available options include compressed and uncompressed formats.

Frame Size — Video frame width and height

auto (default) | [400 400] | [800 600] | [1280 720] | [1920 1080]

Video frame width and height. The frame dimensions must be positive integers. For example, the vector [800 400] sets the video frame dimensions to 800 pixels in width and 400 pixels in height. To use the current dimensions of the active visualization tile in Multibody Explorer, select auto.

Limitations

• By default, on Linux distributions, the Video Creator does not support the MPEG-4 format.

Version History

Introduced in R2016b
