Battery Passive Cell Balancing

Open Model

This example shows how to balance a battery with two cells connected in series by using a passive cell balancing algorithm. The initial state-of-charge (SOC) for the two cells are equal to 0.7 and 0.75. The balancing procedure depends on the cell voltages. Alternatively, you can use the SOC values for balancing. When the balancing is active, a bleeding resistor switches on to bleed the cells with higher charge. You can use the objects and functions in the Battery Pack Model Builder to generate more complex battery packs.

Model

Simulation Results

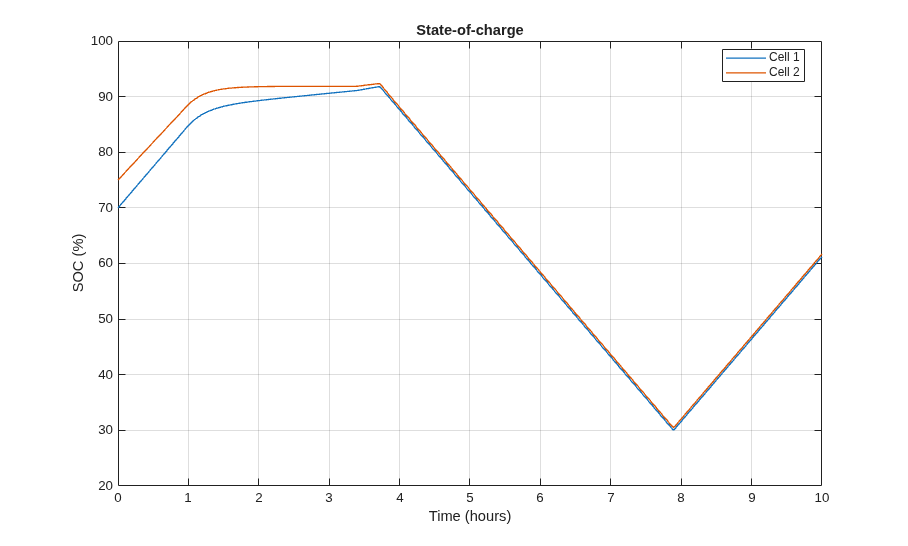

The plot below shows the cell state-of-charge values.

Results from Real-Time Simulation

This example has been tested on these platforms:

  • Speedgoat™ Performance real-time target machine with an Intel® 3.5 GHz i7 multi-core CPU and 4 GB RAM.

  • dSPACE® SCALEXIO LabBox with Intel® Core XEON E3-1275v3 at 3.5GHz and 4 GB RAM.

You can run this model in real time with a step size of 60 microseconds by using the Simscape local solver. For small sample rates, a task overrun might occur during the initial task execution due to a cold cache. To avoid this overrun, if the selected platform supports these options, relax the start-up behavior by specifying a limited number of task overruns or increasing the sample time of periodic tasks during the start-up phase of the real-time application.
