AD9361 Testbenches

You can use the AD9361 testbench models to analyze the functioning and values of Analog Devices® AD9361 RF transmitter, receiver, or end-to-end designs.

Install Analog Devices RF Transceivers using simrfSupportPackages. You can open the testbench models using the Simulink® library browser and opening RF Blockset™ Models for Analog Devices RF Transceivers, or by typing the following in the MATLAB® command prompt:

open ad9361_testbenches

Click to open the AD9361 testbench model from the library:

AD9361 testbench library.

Note

You require these additional licenses to run this model:

  • Communications Toolbox™

  • Stateflow®

  • Fixed-Point Designer™

Complete documentation on how to use the models is available with the software download.

open(ad93xx_getdoc)

AD9361_TX Analog Devices Transmitter Testbench

Look under mask image of AD9361 transmitter testbench.

The transmitter testbench consists of:

  • CW and LTE Signal sources

  • AD9361 transmitter which is the device under test

  • Spectrum analyzer and power meter for signal visualization

AD9361_RX Analog Devices Receiver Testbench

Look under mask image of AD9361 receiver testbench.

The receiver testbench consists of:

  • CW and LTE Signal sources

  • AD9361 receiver which is the device under test

  • Spectrum analyzer and power meter for signal visualization

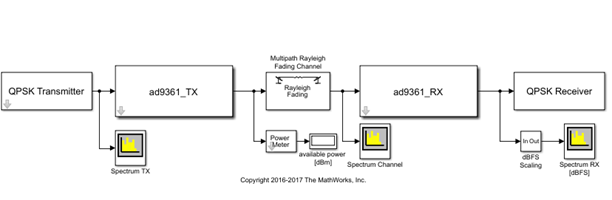

AD9361_QPSK Analog Devices Testbench

QPSK testbench

The QPSK testbench consists of:

  • QPSK signal generator

  • AD9361 transmitter operating at 2 GHz, with default LTE 5-MHz filter configuration

  • Multi-path Rayleigh fading channel

  • Multi-path Rayleigh fading channel

  • AD9361 receiver operating at 2 GHz, with default LTE 5-MHz filter configuration

  • QPSK baseband signal demodulator decoder.
