Modularize Project by Using External Configurations, Test References, and External Stub Files

In a Polyspace^® Platform project, you can choose to save certain components, such as configurations, stubs, and graphical tests as part of the .psprjx project file or as separate files that you link to the project by reference. Modularizing your project by saving these components in separate files makes it easier to collaborate on large projects and work with version control systems. This topic shows how to create a modular project and manage the configuration, graphical test, and stub files that it references.

File Storage Considerations

By default, all new configurations and graphical tests you create in the Polyspace Platform user interface are part of the .psprjx project file. When you create a stub for an undefined function or variable, you can choose whether to create a project-specific stub or write your stub implementation in a C/C++ stub file. Before you write external C/C++ stub files or convert your configurations and graphical tests to separate files, consider the folder structure and file naming conventions you want to use to organize these files.

One possibility is to create new subfolders such as configs, test_refs, and stubs inside your project folder. Depending on the size of your project, you can save all three types of external configuration files in one subfolder, or create individual subfolders for each type of configuration, such as build, static, and test. Similarly, for test references, you can save all .pstestd files in one subfolder, or create additional suite or component-based subfolders to organize the files. For example, if you modularize the Polyspace Test™ demo project and organize the test references in subfolders by suite, the folder structure could look like this:

Getting_Started_Example/
├── Demo_C_PS_Test.psprjx
├── configs/
│   ├── Demo_C_PS_Test-Build_Configuration.pscfg
│   ├── Demo_C_PS_Test-Analysis_Configuration.pscfg
│   ├── Demo_C_PS_Test-Test_Configuration.pscfg
├── includes/
│   ├── types.h
├── sources/
│   ├── utils.c
├── test_refs/
│   ├── checkStateTests/
│       ├── checkAccelerations_test.pstestd
│       ├── checkAgainstSpeedLimit_test.pstestd
│   ├── integrationTests/
│       ├── update_test_1.pstestd
│       ├── update_test_2.pstestd
│   ├── updateStateTests/
│       ├── addLatestReading_test_1.pstestd
│       ├── addLatestReading_test_1_fail.pstestd
│       ├── addLatestReading_test_2.pstestd
│       ├── initOrReset_test.pstestd
├── tests/
│   ├── Requirements.html
│   ├── test.c
│   ├── testdata.h

To create a portable project that can be used on different machines by multiple users, use relative paths when adding files to the project. For more information, see Add Resources Using Relative Paths or Variables. To learn which Polyspace files to submit to version control, see Submit Polyspace Files to Version Control.

Modularize Project by Converting Configurations to External Configurations in Polyspace Platform User Interface

To improve version control workflows, modularize your Polyspace Platform project by converting your configuration variants to external configurations. An external configuration is a build, static analysis, or testing and profiling configuration that you save in a .pscfg file and link to the project by reference.

In a continuous integration workflow, you can submit the .psprjx project file to a version control system, along with all external configuration files it references. If you need to modify an external configuration, you can check out and edit only the specific configuration file that needs updating. Before submission, use the diff/merge tool to compare and merge your version of a configuration variant with the version in the repository. For more details on the diff/merge tool, see Compare and Merge Polyspace Platform Projects and Configurations Before Submission to Source Control.

Convert Configuration to External Configuration

To convert a build configuration variant to an external configuration:

1. Open your project configuration, navigate to the Build tab and select the configuration you want to convert. On the Polyspace Platform toolstrip, click Convert.

2. Choose a filename and location for the external configuration file and click Save.

   In the Configuration pane, a new External badge appears to let you know that this is an external configuration file referenced by the project. Below the configuration name, you see the name of the .pscfg file, as well as buttons to copy the file path and show the file in Explorer.



3. Save the project to save the reference to the external configuration file.

Edit External Configuration

To edit an external configuration, on the Configuration tab of the toolstrip, in the Config Reference section, click Edit. Make any necessary changes to the configuration. When you are done, click Save on the Configuration tab of the toolstrip to save your changes in the referenced .pscfg file. Alternatively, save the project file and all referenced configurations and graphical tests by selecting Save All on the Project tab of the toolstrip. After saving, you can leave editing mode by clicking Edit again.

If you are referencing the external configuration file from multiple projects, changes are reflected the next time you open the configuration in those projects.

Import External Configuration

Once you have a configuration saved in a .pscfg external configuration file, you can reference it from other projects. To do so:

1. Open the project from which you want to reference an external configuration file. Then, open the configuration for that project.

2. On the Polyspace Platform toolstrip, click Import > Import as External Configuration.



3. Use the file browser to find and select the .pscfg configuration files you want to import by reference and click Open.

4. In your project configuration, navigate to the appropriate tab. The external configuration you imported appears in the drop-down list. To make the external configuration active, select it from the list and click Make Active in the Configuration tab of the toolstrip.

5. Save the project to save the new reference to the external configuration file.

Modularize Project by Converting Graphical Tests to Test References in Polyspace Platform User Interface

You can also modularize your project by using test references. A test reference is a graphical test case that you save in a .pstestd file that is linked to the project by reference.

Convert Graphical Tests to Test References

To convert a graphical test case saved in the project to a test case file that is linked to the project by reference, open the test case in the Polyspace Platform user interface. On the Test Case tab of the toolstrip, in the Test Reference section, click Convert.

Choose a filename and location for the new .pstestd file and click Save. Polyspace saves the converted test in the specified .pstestd file and links to it by reference. Because the conversion process extracts the graphical test from the project and replaces it with a reference to the new .pstestd file, you need to save the project to save that change.

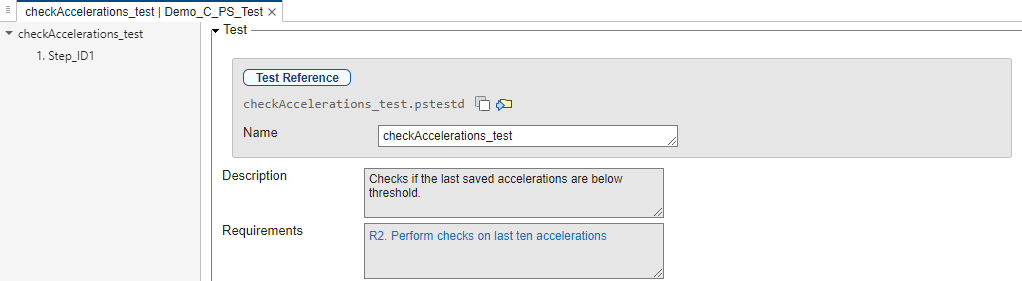

After you convert a graphical test to a test reference, Polyspace updates the icon in the Projects pane from a graphical test icon to a test reference icon . When you open the converted test in the Polyspace Platform user interface, you see a new gray box at the top of the Test pane that contains:

• A Test Reference badge.

• The name of the .pstestd file, followed by a button to copy the file path to the clipboard and a button to show the file in Explorer.

• A Name field, containing the name of the graphical test. This name is saved in the project file. If you change it, you need to save the project.

Edit Test Reference

When a project references a .pstestd file, the path to that file and the Name of the graphical test case are saved in the project file. You can edit the name of the test reference at any time. To save those changes, you save the project file. To edit any other part of the test reference, click Edit in the Test Reference section of the Test Case tab of the toolstrip. After making your changes, save them to the .pstestd file by clicking Save. Alternatively, save the project file and all referenced configurations and graphical tests by selecting Save All on the Project tab of the toolstrip. After saving, you can leave editing mode by clicking Edit again.

Import Test Reference

If you have a graphical test case already saved in a .pstestd file, you can import a local copy of that test case to be saved in the project file, or import a reference to the test case.

• To import a local copy of a graphical test case into your project from a .pstestd file, on the Project tab of the toolstrip, in the Test section, select Import Tests > Import Copy of Graphical Test Case.

• To import a graphical test case by referencing the .pstestd file from the project, select Import Tests > Import Graphical Test Case by Reference. This adds a reference from your project to the .pstestd file you specify.

See Import and Export Graphical Tests for more information.

Modularize Project Using External C/C++ Stub Files

To improve sharing and reuse as well as version control workflows, you can author C/C++ stub files to work around undefined functions and variables when testing your code in a Polyspace Platform project. You can submit these stub source files to version control and use the stub source files in any project where the function and variable definitions are needed. For more information on working with external stub files, see Stub Undefined Callees Using External Files and polyspace.project.Stubs.

Modularize Project Using Python API Scripts

Whether you create your project in the Polyspace Platform user interface or the Polyspace Python^® API, you can use the Polyspace Python API to convert your configurations and graphical tests to files that the project can reference. If you have many configurations and tests to convert, writing a script using the Polyspace Python API may be easier than converting each element individually in the Polyspace Platform user interface. For an example, see Modularize Existing Project by Using Polyspace Python API.
