R2024a

New Features, Bug Fixes, Compatibility Considerations

Analysis Setup

polyspaceArtifact Function: Generate artifacts necessary for Polyspace analysis without regenerating code

In R2024a, you can generate Polyspace^® artifacts for a Simulink^® model without regenerating the code by calling the function polyspaceArtifact. You do not need to integrate Polyspace with Simulink to use this function. The function polyspaceArtifact is available with Simulink R2024a. This function generates two artifacts:

• Data range specifications — The data ranges of the generated code summarized in an XML file.

• Link-to-model data — The data to link the generated code to the Simulink model summarized in an XML file.

This function generates individual XML files. Access to individual Polyspace artifacts outside of an archive can be useful in a continuous integration workflow.

Some changes in your model might require updating these artifacts without requiring updates to the generated code. For examples, If you change the Minimum or Maximum attribute of a signal in your model, only the data range specification needs to be updated to run a more precise Polyspace analysis. Use polyspaceArtifact function to generate the new data range specification XML file quickly without requiring a complete regeneration of your code.

For more details about the function, see polyspaceArtifact.

Simulink Support: More precise analysis of GetSet storage class signal

Starting in R2024a, Polyspace uses the minimum and maximum values of a signal that has the GetSet storage class as the data range specification of the signal. Previously, if a signal had the GetSet storage class, Polyspace ignored the specified minimum and maximum value of the signal and ran the analysis assuming a full range signal.

Running a Polyspace analysis with a specified minimum or maximum for signals with GetSet storage class can reduce the number of false positive Polyspace Bug Finder™ results or orange Polyspace Code Prover™ checks. Starting in R2024a, the number of false positive Bug Finder results in your analysis may decrease.

Updated Microsoft Visual C++ Support: Set up Polyspace analysis for code compiled with Visual Studio 2022

In R2024a, Polyspace supports the compiler Visual Studio 2022 natively. If you build your source code by using Visual Studio 2022 (versions 17.x), you can specify the compiler name for your Polyspace analysis.

You specify a compiler at the command line by using the option -compiler. For example:

polyspace-bug-finder-server -compiler visual17.x -sources file.c ...

For more information, see Compiler (-compiler).

Because of the native support, you can now set up a Polyspace project without knowing the internal workings of this compiler. The analysis can interpret macros that are implicitly defined by the compiler and compiler-specific language extensions such as keywords and pragmas.

Updated Microsoft Visual C++ Support: Set up Polyspace analysis for code compiled with Visual Studio 2022

 C++ Project Setup: Polyspace analysis uses the C++11 Standard (ISO/IEC 14882:2011) by default

In R2024a, the default configuration for C++ Polyspace projects uses the C++11 Standard (ISO/IEC 14882:2011) and the analysis supports features specific to C++11 during compilation. If you specify a value other than generic for the Compiler (-compiler) option, the default C++ version is defined by your compiler.

Previously, the default configuration for C++ projects used C++03.

 Compatibility Considerations

If your code uses C++11, you no longer need to set the option C++ standard version (-cpp-version) to cpp11 when you run the analysis.

If you have an existing project that uses C++03, specify the option -compiler cpp03.

Polyspace Analysis from MATLAB: Polyspace returns job ID when running analysis on remote cluster

Polyspace now returns the job ID associated with a remote analysis when you run Polyspace from MATLAB and offload the analysis to a remote cluster. You can use the job ID to, for example, download analysis results as part of an automation script.

If you create a polyspace.Options object and configure Polyspace to send the analysis to a job scheduler, you can obtain the job ID of the remote analysis by using these MATLAB commands:

opts=polyspace.Options;
% Add sources and set other analysis options
% ...
% Run analysis
[status, jobID]=polyspaceBugFinder(opts,'-batch','-scheduler','myJobSchedulerProfile');

See also polyspaceBugFinder.

 Changes in analysis options and binaries

The code metrics estimating sizes of local variables have been removed

These code metrics have been removed from Bug Finder:

• Lower Estimate of Size of Local Variables

• Higher Estimate of Size of Local Variables

When you calculate the code metrics by using the option -code-metrics, these two code metrics are not reported. To calculate these metrics, use the option -stack-usage in Polyspace Code Prover. See Calculate stack usage (-stack-usage) (Polyspace Code Prover).

The value CWE for the option Find defects (-checkers -disable-checkers) has been removed

Errors

The value CWE for the option Find defects (-checkers -disable-checkers) has been removed. If you use the value CWE for this option, the Polyspace analysis fails with an error. To check your code for Common Weakness Enumeration (CWE) violations, use the option Check CWE (-cwe) instead.

The option Ignore link errors (-no-extern-C) will be removed in a future release

Warns

The option Ignore link errors (-no-extern-C) allows you to ignore linking errors that can arise due to functions having C linkage in one source file and C++ linkage in another source file. Polyspace now supports mixing C code and C++ code in a project. Mixed linkages no longer cause errors in a Polyspace analysis. This option is no longer useful and will be removed in a future release.

If you use this option in your analysis, Polyspace issues a warning. Remove this option from your Polyspace commands and projects.

Change in calculation of cyclomatic complexity

Behavior change

In R2024a, you can use the option -consider-switch-as-single-decision to change how Polyspace calculates the code metric Cyclomatic Complexity and applies the Guideline Cyclomatic complexity exceeds threshold. By default, Polyspace counts each individual case of a switch-case statement as a separate decision point if the case is terminated with a break statement. When you specify this option, Polyspace counts the entire switch-case statement as a single decision point.

Analysis Results

 MISRA C:2023 Support: Check for violations of coding rules from MISRA C: 2023 standard

In R2024a, Polyspace supports the new MISRA C™:2023 standard. This new standard consolidates:

• MISRA C:2012 rules and directives

• Clarifications added in Technical Corrigendum 1 (TC1) and Technical Corrigendum 2 (TC2)

• New rules and modifications added in Amendment 1 (AMD1), Amendment 2 (AMD2), Amendment 3 (AMD3), and Amendment 4 (AMD4)

To check for violations of coding rules from this new standard, use either of these methods:

• Polyspace desktop user interface — In the Configuration pane, select Check MISRA C:2023 in the node Coding Standards & Code Metrics. Select a value from the drop-down list to enable groups of MISRA C:2023 coding rules.

• Command line — Use the option Check MISRA C:2023 (-misra-c-2023) or Checkers activation file (-checkers-activation-file).

To check for violations of MISRA C:2023 rules and directives that apply to generated code, specify the option Use generated code requirements (-misra-c-2023-agc-mode).

The table shows Polyspace coverage of MISRA C:2023 rules and directives.

Rules	Coverage
Rules from the MISRA C:2012 standard	100%
Clarifications added by TC1 and TC2	100%
Rules and modifications from MISRA C:2012 AMD1. These rules address security vulnerabilities.	100%
Rules and modifications from MISRA C:2012 AMD2. These rules address C11 core functionalities such as the aligned_alloc function and the _Exit flag.	100%
Rules and modifications from MISRA C:2012 AMD3. These rules address new functionalities from the C11 and C18 standards such as complex essential types and _Generic selection.	100%
Rules and modifications from MISRA C:2012 AMD4. These rules address new functionalities from the C11 and C18 standard related to multithreading and atomics.	Will be covered in a future release

For a list of supported MISRA C:2023 rules, see MISRA C :2023 Directives and Rules.

CWE Support: Additional CWE version 4.12 support

In R2024a, Polyspace supports Common Weakness Enumeration (CWE) version 4.12. In this release, you can check for violations of these CWE rules in addition to previously supported rules.

CWE Rule	Description	Polyspace Checkers
CWE 543	Use of Singleton Pattern Without Synchronization in a Multithreaded Context	CWE Rule 543
CWE 674	Uncontrolled Recursion	CWE Rule 674

For all CWE rules supported with Polyspace Bug Finder, see Common Weakness Enumeration (CWE).

CWE Support: Extend Polyspace coverage of CWE rules more easily

Polyspace now checks for an additional 77 Common Weakness Enumeration (CWE) rules when you enable all CWE checkers. Previously, Polyspace checked for a smaller subset of rules when you enabled all CWE checkers, and you had to use a mapping between CWE rules and Polyspace defect checkers to extend the coverage of CWE rules.

With the broader CWE coverage, some Polyspace CWE checkers only partially match a given CWE rule. To enable only CWE checkers that match a CWE rule exactly, set the Check CWE (-cwe) analysis option to the new value all-exact-checkers.

Bug Finder Checkers: Check for defects such as unused objects or expensive std::function type

In R2024a, using new Bug Finder checkers, you can check for these additional defects.

Defect	Description	Defect Group
Unnecessary reference to parameter	Parameter is passed to function as const reference when passing by value is more efficient	Performance
Expensive unused object	Expensive local object is constructed but not used	Performance
Expensive std::function type definition	When defining an std::function type, pass-by-value semantics are used for expensive to copy arguments	Performance
Unused variable	Variable defined or declared but not read or written	Good Practice
Resource injection	Data input is not properly restricted before being used as a resource identifier	Security

For the full list of checkers, see Defects. For more information on defect groups, see Bug Finder Defect Groups.

MISRA C:2012 Support: Check for violations of rules and directives introduced and modified in MISRA C:2012 Amendment 3

In R2024a, Polyspace supports new and modified rules and directives from MISRA C:2012 Amendment (AMD) 3.

Rules and Directives Introduced in Amendment 3

Rule or Directive	Description
MISRA C:2012 Dir 4.15	Evaluation of floating-point expressions shall not lead to the undetected generation of infinities and NaNs
MISRA C:2012 Rule 1.5	Obsolescent language features shall not be used
MISRA C:2012 Rule 6.3	A bit field shall not be declared as a member of a union
MISRA C:2012 Rule 7.5	The argument of an integer constant macro shall have an appropriate form
MISRA C:2012 Rule 8.15	All declarations of an object with an explicit alignment specification shall specify the same alignment
MISRA C:2012 Rule 8.16	The alignment specification of zero should not appear in an object declaration
MISRA C:2012 Rule 8.17	At most one explicit alignment specifier should appear in an object declaration
MISRA C:2012 Rule 17.9	A function declared with a _Noreturn function specifier shall not return to its caller
MISRA C:2012 Rule 17.10	A function declared with a _Noreturn function specifier shall have void return type
MISRA C:2012 Rule 17.11	A function that never returns should be declared with a _Noreturn function specifier
MISRA C:2012 Rule 17.12	A function identifier should only be used with either a preceding &, or with a parenthesized parameter list
MISRA C:2012 Rule 17.13	A function type shall not be type qualified
MISRA C:2012 Rule 18.9	An object with temporary lifetime shall not undergo array-to-pointer conversion
MISRA C:2012 Rule 21.22	All operand arguments to any type-generic macros declared in <tgmath.h> shall have an appropriate essential type
MISRA C:2012 Rule 21.23	All operand arguments to any multi-argument type-generic macros declared in <tgmath.h> shall have the same standard type
MISRA C:2012 Rule 21.24	The random number generator functions of <stdlib.h> shall not be used
MISRA C:2012 Rule 23.1	A generic selection should only be expanded from a macro
MISRA C:2012 Rule 23.2	A generic selection that is not expanded from a macro shall not contain potential side effects in the controlling expression
MISRA C:2012 Rule 23.3	A generic selection should contain at least one non-default association
MISRA C:2012 Rule 23.4	A generic association shall list an appropriate type
MISRA C:2012 Rule 23.5	A generic selection should not depend on implicit pointer type conversion
MISRA C:2012 Rule 23.6	The controlling expression of a generic selection shall have an essential type that matches its standard type
MISRA C:2012 Rule 23.7	A generic selection that is expanded from a macro should evaluate its argument only once
MISRA C:2012 Rule 23.8	A default association shall appear as either the first or the last association of a generic selection

Rules and Directives Modified in Amendment 3

Rule or Directive	Description of Change
MISRA C:2012 Rule 1.4	The rule now allows the use of these features: The _Generic operator The _Noreturn specifier The <stdnoreturn.h> header file The _Alignas alignment specifier The _Alignof operator The <stdalign.h> header file
MISRA C:2012 Rule 10.1	Polyspace reports a violation on comparison of real and complex floating-point types.
MISRA C:2012 Rule 10.3	Polyspace reports no violations for appropriate assignments of essentially real floating types to essentially complex floating types.
MISRA C:2012 Rule 10.4	The rule now supports complex essential types.
MISRA C:2012 Rule 10.5	Polyspace reports a violation on inappropriate conversion to and from essentially complex floating types.
MISRA C:2012 Rule 10.7	The rule now supports complex essential types.
MISRA C:2012 Rule 10.8	Polyspace reports a violation when complex numbers are cast to wider essential types or cast from narrower essential types.
MISRA C:2012 Rule 11.7	The rule now supports complex essential types.
MISRA C:2012 Rule 21.11	The rule is now categorized as Advisory.
MISRA C:2012 Rule 21.12	The rule is now categorized as Required.
MISRA C:2012 Dir 4.9	The directive now allows function-like macros when they are used for generic selection.

See Polyspace Support for MISRA C : 2012 Technical Corrigenda and Amendments.

Code Metrics: Measure new code comment metrics

In R2024a, you can calculate these additional code metrics.

Code Metrics	Description
Comment Ratio	Ratio of number of lines that contain comments to the total number of lines in a file, expressed as percentage. This metric is equivalent to the Comment Frequency metric defined by European Cooperation for Space Standardization (ECSS).
Function Comment Density	Ratio of number of comments to number of statements per function. This metric is similar to the file level metric Comment Density , measured at the function level.

See also Code Metrics.

Guidelines: Check if use of recursion in your project exceeds threshold

In R2024a, you can use these Guideline coding rules to check if the level of recursion in your project is beyond a specified threshold:

Guideline Checker	Description	Default Threshold
Number of recursions exceeds threshold	Number of call graph cycles over one or more functions is greater than the defined threshold	0
Number of direct recursions exceeds threshold	Number of instances of a function calling itself directly is greater than the defined threshold.	0

The Guidelines coding rules now cover all code metrics specified by the Hersteller Initiative Software (HIS) standard. See Reduce Software Complexity by Using Polyspace Checkers.

Reviewing Results

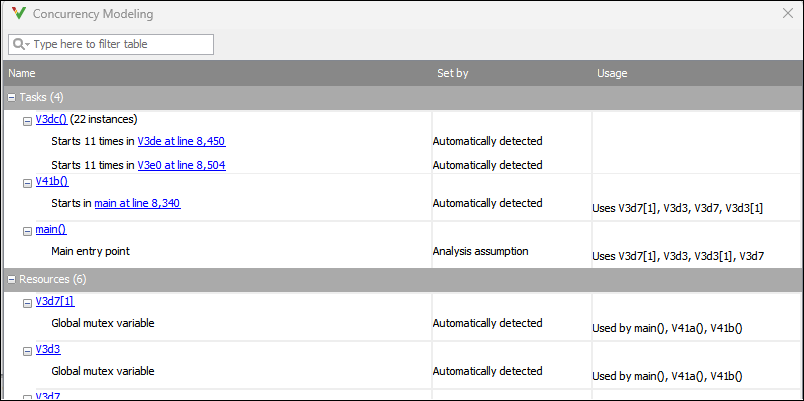

Concurrency Modeling: See protections for shared variables in concurrency modeling table

Starting in R2024a, you can view all resources related to concurrency modeling of your application in one place. On the Concurrency Modeling pane, in addition to tasks, you can now see resources such as protections for shared variables (mutex variables or functions that begin and end critical sections).

You can use the Concurrency Modeling pane to understand the Polyspace modeling of your C/C++ application with respect to concurrent/multithreaded execution. In particular, you can find the following information in one place:

• Which tasks can run concurrently.

• Which resources are used to protect a section of code in a task from interruption by another task.

For more information, see Concurrency Modeling in Polyspace Desktop User Interface.

MISRA Comments and Code Annotations: Import your existing MISRA C:2012 justifications to MISRA C:2023 results

In R2024a, you can check for violations of coding rules from the new MISRA C:2023 standard. If you have existing annotations and justification for MISRA C:2012 and MISRA C:2004 results in your project, Polyspace automatically imports them for MISRA C:2023 results.

For details about importing justification, see Import Justifications from an Older MISRA C Standard to a Newer MISRA C Standard.

The automatic comment import from MISRA C:2012 results to MISRA C:2023 results also takes place if you upload your MISRA C:2023 results to a Polyspace Access database that contains MISRA C:2012 results.
