R2023b

New Features, Bug Fixes, Compatibility Considerations

Analysis Setup

Simulink Support: Polyspace does not report MISRA C: 2012 rule violations for unused declarations in generated utility files

When generating code from a Simulink^® model, Embedded Coder^® generates utility files containing declarations for various utility functions. You can use these utility functions and macros in various other places in your project. Some of these utility functions can remain unused in your project. Starting in R2023b, Polyspace^® no longer reports violations of these MISRA C™: 2012 rules for the utility files:

MISRA C:2012 Rule 2.3 — A project should not contain unused type declarations.
MISRA C:2012 Rule 2.5 — A project should not contain unused macro declarations.

Compatibility Considerations

You might see fewer violations of these rules for the shared utility folders:

MISRA C:2012 Rule 2.3 — A project should not contain unused type declarations.
MISRA C:2012 Rule 2.5 — A project should not contain unused macro declarations.

Simulink Support: Reduce Polyspace analysis time of generated code by ignoring specific referenced models

Starting in R2023b, you can decrease the Polyspace analysis time of generated code by ignoring one or more referenced models. If you use a referenced model that is already verified or part of a library, you can ignore the referenced model. By ignoring already verified referenced models, you can verify your model hierarchy incrementally. This feature is available only if you use Embedded Coder to generate code from your Simulink models. Polyspace assumes that:

The functions originating from the ignored model are stubbed.
The variables originating from the ignored model are full-range.

These assumptions allow Polyspace to analyze less code and can reduce the time required to complete an analysis.

You can specify the referenced models you want to ignore interactively or programmatically:

If you run Polyspace interactively from the Simulink toolstrip, then select Ignore model references in the Configuration Parameters window.
If you run Polyspace analysis programmatically, then specify the list of model that you want to ignore in the field ModelRefIgnoreList of a pslinkoptions object. The list is a cell containing strings where each string is a referenced model that you want to ignore.

For details about the workflow, see:

Configuration from Build System: Improved determination of configuration import strategy based on compiler version

Polyspace can now detect your compiler version and use a configuration import strategy that is compatible with that compiler version.

To extract predefined macros, includes, and other compiler information, Polyspace tries different import strategies such as querying the compiler directly or tracing your build. Polyspace tries only import strategies that are compatible with the compiler.

Previously, Polyspace did not detect the compiler version and might have tried an import strategy that was not compatible with that compiler version.

Analysis Results

MISRA C:2012 Support: Checkers updated to account for MISRA C:2012 Technical Corrigendum 2

MISRA C:2012 Technical Corrigendum (TC) 2 adds clarifications to existing rules. The clarifications have led to changes in these checkers:

Rule	Description	Updates
`MISRA C:2012 Rule 2.5`	A project should not contain unused macro definitions	The title of the rule is changed. The word 'declarations' is replaced by 'definitions'.
`MISRA C:2012 Rule 10.2`	Expressions of essentially character type shall not be used inappropriately in addition and subtraction operations	Polyspace now reports violations of this rule if you use `long` or `long long` type variables in an arithmetic operation with `char` type variables.
`MISRA C:2012 Rule 13.2`	The value of an expression and its persistent side effects shall be the same under all permitted evaluation orders	When evaluating whether the value or side effect of an expression depends on the order of evaluation, Polyspace no longer considers the known value of an object. Polyspace now determines if an expression is noncompliant using only the expression. This change simplifies result review. Consider this code: int foo(int x) { int a = 0; int y = (x = a) && (x = 2); //Noncompliant return (x++) && (x = 1); //Noncompliant } Previously, Polyspace considered these expressions compliant because the context clarifies that their values do not change with the order of evaluation. Polyspace now ignores the known values and considers only the expressions themselves. Because an object is modified twice in these expressions, Polyspace now reports these expressions as noncompliant. Triaging these results is simplified because you no longer need to consider context such as the value of `a`.
`MISRA C:2012 Rule 13.6`	The operand of the sizeof operator shall not contain any expression which has potential side effects	This rule now has the category of "Required" instead of "Mandatory".
`MISRA C:2012 Rule 17.4`	All exit paths from a function with non-void return type shall have an explicit return statement with an expression	Polyspace does not report a violation if the `main()` function of C code from C99 or later lacks an explicit `return` statement.
`MISRA C:2012 Rule 17.5`	The function argument corresponding to a parameter declared to have an array type shall have an appropriate number of elements	This rule has the category of "Required" instead of "Advisory".

See Polyspace Support for MISRA C : 2012 Technical Corrigenda and Amendments.

CERT C++ Support: Check for concurrency, exception handling, and other issues

In R2023b, you can look for violations of these CERT C++ rules in addition to previously supported rules.

CERT C++ Rule	Description	Polyspace Checker
CON51-CPP	Ensure actively held locks are released on exceptional conditions	`CERT C++: CON51-CPP`
CON55-CPP	Preserve thread safety and liveness when using condition variables	`CERT C++: CON55-CPP`
CON56-CPP	Do not speculatively lock a non-recursive mutex that is already owned by the calling thread	`CERT C++: CON56-CPP`
ERR60-CPP	Exception objects must be nothrow copy constructible	`CERT C++: ERR60-CPP`
ERR62-CPP	Detect errors when converting a string to a number	`CERT C++: ERR62-CPP`
EXP56-CPP	Do not call a function with a mismatched language linkage	`CERT C++: EXP56-CPP`
EXP60-CPP	Do not pass a nonstandard-layout type object across execution boundaries	`CERT C++: EXP60-CPP`
INT50-CPP	Do not cast to an out-of-range enumeration value	`CERT C++: INT50-CPP`
OOP56-CPP	Honor replacement handler requirements	`CERT C++: OOP56-CPP`
MSC54-CPP	A signal handler must be a plain old function	`CERT C++: MSC54-CPP`

For the complete list of supported rules, see CERT C++ Rules.

CWE Support: Updated CWE version and support for additional rules

In R2023b, Polyspace supports version 4.10 of the CWE standard. In this release, you can check for violations of these CWE rules in addition to previously supported rules.

CWE Rule	Description	Polyspace Checkers
CWE-311	Missing Encryption of Sensitive Data	`CWE Rule 311`
CWE-319	Cleartext Transmission of Sensitive Information	`CWE Rule 319`
CWE-321	Use of Hard-coded Cryptographic Key	`CWE Rule 321`
CWE-374	Passing Mutable Objects to an Untrusted Method	`CWE Rule 374`
CWE-493	Critical Public Variable Without Final Modifier	`CWE Rule 493`
CWE-496	Public Data Assigned to Private Array-Typed Field	`CWE Rule 496`
CWE-498	Cloneable Class Containing Sensitive Information	`CWE Rule 498`
CWE-606	Unchecked Input for Loop Condition	`CWE Rule 606`
CWE-683	Function Call With Incorrect Order of Arguments	`CWE Rule 683`
CWE-686	Function Call With Incorrect Argument Type	`CWE Rule 686`
CWE-687	Function Call With Incorrectly Specified Argument Value	`CWE Rule 687`
CWE-688	Function Call With Incorrect Variable or Reference as Argument	`CWE Rule 688`
CWE-822	Untrusted Pointer Dereference	`CWE Rule 822`

For all CWE rules supported with Polyspace Bug Finder™, see Common Weakness Enumeration (CWE).

Bug Finder Checkers: Check for expensive std::any_cast, expensive member initialization, and use of new in throw expressions

In R2023b, using new Bug Finder checkers, you can check for these additional issues.

Defect	Description	Defect Group
`Expensive member initialization`	You assign values to class members in the constructor body instead of constructing members using a member initializer list	Performance
`Expensive use of std::any_cast`	An object is cast by-value using `std::any_cast` when casting by-reference is more efficient	Performance
`Plain text password stored in file system`	Password stored in files in plain text format	Security
`Pointer or reference to destroyed temporary object`	Destruction of temporary object results in dangling pointer or reference	Programming
`Tainted source used with sensitive function`	Data obtained from an unsecured source is passed to user-defined sensitive function	Tainted Data
`Throw argument expression calls new`	The argument expression in a `throw` statement allocates memory by calling `new`, which can result in abrupt termination of the program and resource leaks	C++ Exception

For the full list of checkers, see Defects. See also Bug Finder Defect Groups.

Code Covered by Analysis: Files with noncompiling functions no longer excluded entirely from post-compilation analysis

In R2023b, if a C/C++ file does not compile, Bug Finder does not exclude the file entirely from post-compilation analysis. Only functions that do not compile are excluded from this phase of the analysis.

Checkers that involve numerical, control flow, data flow and memory analysis run during the post-compilation phase of a Bug Finder analysis. Therefore, you might see more results of these types in noncompiling files.

For instance, in the following file, both functions getX() and getY() contain a dead if branch. However, getY() also contains a compilation error.

int getANumber(void);

int getX(void) {
    int x = getANumber();
    if(x == 0)
        if(x < 0) //Dead code
           return 1;
    return x;
}

int getY(void) {
    int y = getANumber();
    if(y == 0)
        if(y < 0) //Dead code
           return 1;
    return x; //Compilation error
}

Prior to R2023b, the entire file was excluded from post-compilation analysis, so you did not see a Dead code result in this file. Starting in R2023b, you see the dead code result in the function getX(), which does not contain a compilation error.

Compatibility Considerations

You might see more results in files that contain noncompiling files. The analysis now excludes only the noncompiling functions in those files and takes the remaining functions into account.

Changes to Code Metrics

In R2023b, these changes have been made to the calculation of supported code metrics:

Code Metric	Description	Change
`Number of Call Levels`	Maximum depth of nesting of control flow structures	Polyspace now starts counting the call level from `0` and each additional nesting level increments this metric. That is, the call levels are counted as `0,1,2,3...`. You can start counting call levels from `1` instead of `0` by using the new command-line option `-start-level-from-one`. See `-start-level-from-one`. Previously, Polyspace counted the call levels as `1,1,2,3...`.
`Number of Executable Lines`	Number of executable lines in function body	For template functions that are members of a class, Polyspace now reports these metrics as `Not computed`. Previously, Polyspace reported the value `0` for templates that are members of a class. These code metrics are not calculated for `lambda` expressions.
`Number of Lines Within Body`	Number of lines in function body
`Language Scope`	Cost of maintaining or changing a function	This metric is not calculated for `lambda` expressions. Polyspace now takes templates into account. If your code contains templates, Polyspace can report a higher value for this metric compared to previous releases. Polyspace now reports this metric separately for each instantiation of a template.

Compatibility Considerations

You might see a different value for code metrics after these changes..

Reviewing Results

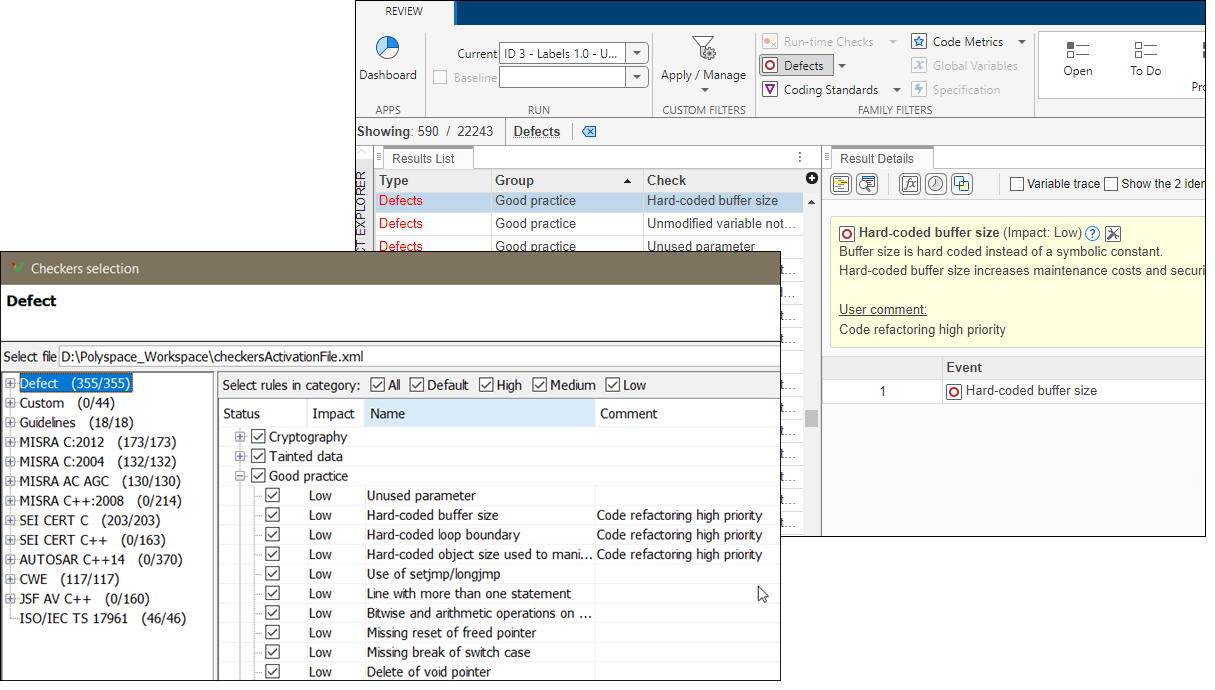

Bug Finder Checkers Support: Display custom comments in Results List and Result Details pane

If you use the Checkers selection interface to enable Bug Finder checkers and you enter text in the Comment column for these checkers, Polyspace now displays that text in the Result Details pane and in the Detail column of the Results List. You can then filter your results based on the text that you entered.

Add custom comments if, for instance, you want to focus your review on a custom grouping of defect checkers while refactoring your code.

You cannot enable Bug Finder Checkers and create custom comments if you open the Checkers selection interface from the Polyspace user interface. To create custom comments, open the Checkers selection interface from one of the Polyspace as You Code plugins or by using the command polyspace-checkers-selection.
