swt2

Discrete stationary 2-D wavelet transform

    Description

    example

    [A,H,V,D] = swt2(X,N,wname) returns the approximation coefficients A and the horizontal, vertical, and diagonal detail coefficients H, V, and D, respectively, of the stationary 2-D wavelet decomposition of the image X at level N using the wavelet wname.

    Note

    • swt2 is uses periodic extension.

    • swt2 uses double-precision arithmetic internally and returns double-precision coefficient matrices. swt2 warns if there is a loss of precision when converting to double.

    [A,H,V,D] = swt2(X,N,LoD,HiD) uses the specified lowpass and highpass wavelet decomposition filters LoD and HiD, respectively.

    swc = swt2(___) returns the approximation and detail coefficients in swc.

    Examples

    collapse all

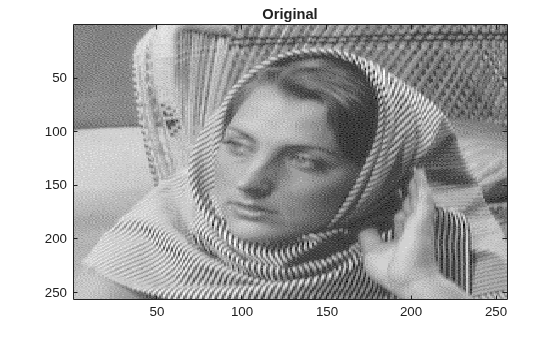

    Load and display an image.

    load woman
    imagesc(X)
    colormap(map)
    title('Original')

    Perform the stationary wavelet decomposition of the image at level 2 using db6.

    [ca,chd,cvd,cdd] = swt2(X,2,'db6');

    Extract the level 1 and level 2 approximation and detail coefficients from the decomposition.

    A1 = wcodemat(ca(:,:,1),255);
    H1 = wcodemat(chd(:,:,1),255);
    V1 = wcodemat(cvd(:,:,1),255);
    D1 = wcodemat(cdd(:,:,1),255);

    A2 = wcodemat(ca(:,:,2),255);
    H2 = wcodemat(chd(:,:,2),255);
    V2 = wcodemat(cvd(:,:,2),255);
    D2 = wcodemat(cdd(:,:,2),255);

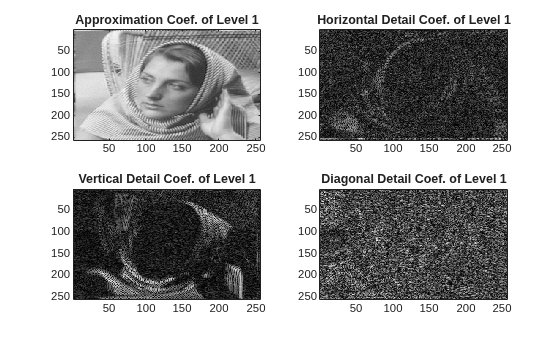

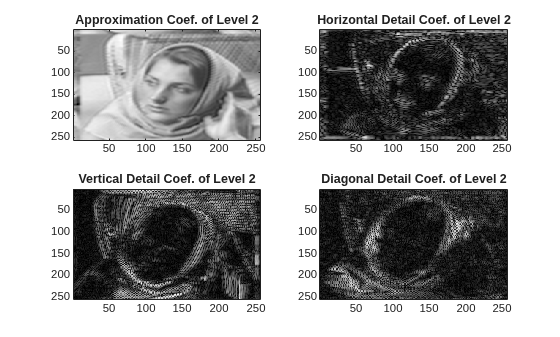

    Display the approximation and detail coefficients from the two levels.

    subplot(2,2,1)
    imagesc(A1)
    title('Approximation Coef. of Level 1')

    subplot(2,2,2)
    imagesc(H1)
    title('Horizontal Detail Coef. of Level 1')

    subplot(2,2,3)
    imagesc(V1)
    title('Vertical Detail Coef. of Level 1')

    subplot(2,2,4)
    imagesc(D1)
    title('Diagonal Detail Coef. of Level 1')

    subplot(2,2,1)
    imagesc(A2)
    title('Approximation Coef. of Level 2')

    subplot(2,2,2)
    imagesc(H2)
    title('Horizontal Detail Coef. of Level 2')

    subplot(2,2,3)
    imagesc(V2)
    title('Vertical Detail Coef. of Level 2')

    subplot(2,2,4)
    imagesc(D2)
    title('Diagonal Detail Coef. of Level 2')

    This example shows how to obtain single-level and multilevel stationary wavelet decompositions of an RGB image.

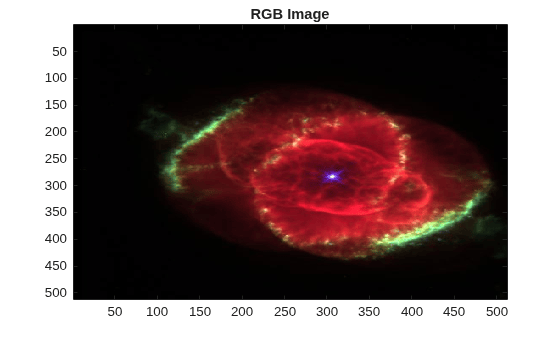

    Load and view an RGB image. The image is a 3-D array of type uint8. Since swt2 requires that the first and second dimensions both be divisible by a power of 2, extract a portion of the image.

    imdata = imread('ngc6543a.jpg');
    x = imdata(1:512,1:512,:);
    image(x)
    title('RGB Image')

    Obtain the level 4 stationary wavelet decomposition of the image using the db4 wavelet. Return the approximation coefficients. Note the dimensions of the coefficients array.

    [a,~,~,~] = swt2(x,4,'db4');
    size(a)
    ans = 1×4

       512   512     3     4

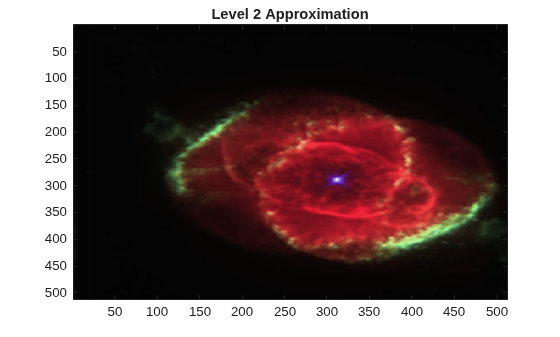

    The coefficients are all of type double. In an RGB array of type double, each color component is a value between 0 and 1. Rescale the level 2 approximation coefficients to values between 0 and 1 and view the result.

    a2 = a(:,:,:,2);
    a2 = (a2-min(a2(:)))/(max(a2(:))-min(a2(:)));
    image(a2)
    title('Level 2 Approximation')

    Obtain the single-level stationary wavelet decomposition of the image using the db4 wavelet. Return the approximation coefficients. In a single-level decomposition of an RGB image, the third dimension is singleton.

    [a,~,~,~] = swt2(x,1,'db4');
    size(a)
    ans = 1×4

       512   512     1     3



    View the approximation coefficients. To prevent an error when using image, squeeze the approximation coefficients array to remove the singleton dimension.

    a2 = squeeze(a);
    a2 = (a2-min(a(:)))/(max(a(:))-min(a(:)));
    image(a2)
    title('Approximation')

    Input Arguments

    collapse all

    Input image, specified as a real-valued 2-D matrix or real-valued 3-D array. If X is 3-D, X is assumed to be an RGB image, also referred to as a truecolor image, and the third dimension of X must equal 3. For more information on truecolor images, see Working with Image Types in MATLAB.

    Data Types: double

    Level of decomposition, specified as a positive integer. 2N must divide size(X,1) and size(X,2). Use wmaxlev to determine the maximum level of decomposition.

    Analyzing wavelet, specified as a character vector or string scalar. swt2 supports only Type 1 (orthogonal) or Type 2 (biorthogonal) wavelets. See wfilters for a list of orthogonal and biorthogonal wavelets.

    Wavelet decomposition filters, specified as a pair of even-length real-valued vectors. LoD is the lowpass decomposition filter, and HiD is the highpass decomposition filter. The lengths of LoD and HiD must be equal. See wfilters for additional information.

    Output Arguments

    collapse all

    Approximation coefficients, returned as a multidimensional array. The dimensions of A depend on the dimensions of the input X and the level of decomposition N.

    • If X is m-by-n:

      • If N is greater than 1, then A is m-by-n-by-N. For 1 ≤ iN, A(:,:,i) contains the approximation coefficients at level i.

      • If N is equal to 1, then A is m-by-n.

    • If X is m-by-n-by-3:

      • If N is greater than 1, then A is m-by-n-by-3-by-N. For 1 ≤ iN and j = 1, 2, 3, A(:,:,j,i) contains approximation coefficients at level i.

      • If N is equal to 1, then A is m-by-n-by-1-by-3. Since MATLAB® removes singleton last dimensions by default, the third dimension is singleton.

    Data Types: double

    Detail coefficients, returned as multidimensional arrays of equal size. H, V, and D contain the horizontal, vertical, and diagonal detail coefficients, respectively. The dimensions of the arrays depend on the dimensions of the input X and the level of decomposition N.

    • If X is m-by-n:

      • If N is greater than 1, the arrays are m-by-n-by-N. For 1 ≤ iN, H(:,:,i), V(:,:,i), and D(:,:,i) contain the detail coefficients at level i.

      • If N is equal to 1, the arrays are m-by-n.

    • If X is m-by-n-by-3:

      • If N is greater than 1, the arrays are m-by-n-by-3-by-N. For 1 ≤ iN and j = 1, 2, 3, H(:,:,j,i), V(:,:,j,i), and D(:,:,j,i) contain the detail coefficients at level i.

      • If N is equal to 1, the arrays are m-by-n-by-1-by-3. For j = 1, 2, 3, H(:,:,1,j), V(:,:,1,j) and D(:,:,1,j) contain the detail coefficients. Since MATLAB removes singleton last dimensions by default, the third dimension is singleton.

    Data Types: double

    Stationary wavelet decomposition, returned as a multidimensional array. swc is the concatenation of the approximation coefficients A and detail coefficients H, V, and D.

    • If X is m-by-n and N is greater than 1, then swc = cat(3,H,V,D,A(:,:,N)).

    • If X is m-by-n and N is equal to 1, then swc = cat(3,H,V,D,A).

    • If X is m-by-n-by-3 and N is greater than 1, then swc = cat(4,H,V,D,A(:,:,:,N)).

    • If X is m-by-n-by-3 and N is equal to1, then swc = cat(4,H,V,D,A).

    Algorithms

    collapse all

    2-D Discrete Stationary Wavelet Transform

    For images, a stationary wavelet transform (SWT) algorithm similar to the one-dimensional case is possible for two-dimensional wavelets and scaling functions obtained from one-dimensional functions by tensor product. This kind of two-dimensional SWT leads to a decomposition of approximation coefficients at level j into four components: the approximation at level j+1, and the details in three orientations (horizontal, vertical, and diagonal).

    This chart describes the basic decomposition step for images.

    where

    • — Convolve the rows of the entry with filter X.

    • — Convolve the columns of the entry with filter X.

    Initialization

    • cA0 = s

    • F0 = LoD

    • G0 = HiD

    • where denotes upsample.

    Note that size(cAj) = size(cDj(h)) = size(cDj(v)) = size(cDj(d)) = s, where s equals the size of the analyzed image.

    Truecolor Image Coefficient Arrays

    To distinguish a single-level decomposition of a truecolor image from a multilevel decomposition of an indexed image, the approximation and detail coefficient arrays of truecolor images are 4-D arrays.

    • If you perform a multilevel decomposition, the dimensions of A, H, V, and D are m-by-n-by-3-by-k, where k is the level of decomposition.

    • If you perform a single-level decomposition, the dimensions of A, H, V, and D are m-by-n-by-1-by-3. Since MATLAB removes singleton last dimensions by default, the third dimension of the arrays is singleton.

    References

    [1] Nason, G. P., and B. W. Silverman. “The Stationary Wavelet Transform and Some Statistical Applications.” In Wavelets and Statistics, edited by Anestis Antoniadis and Georges Oppenheim, 103:281–99. New York, NY: Springer New York, 1995. https://doi.org/10.1007/978-1-4612-2544-7_17.

    [2] Coifman, R. R., and D. L. Donoho. “Translation-Invariant De-Noising.” In Wavelets and Statistics, edited by Anestis Antoniadis and Georges Oppenheim, 103:125–50. New York, NY: Springer New York, 1995. https://doi.org/10.1007/978-1-4612-2544-7_9.

    [3] Pesquet, J.-C., H. Krim, and H. Carfantan. “Time-Invariant Orthonormal Wavelet Representations.” IEEE Transactions on Signal Processing 44, no. 8 (August 1996): 1964–70. https://doi.org/10.1109/78.533717.
