ishole
polyshape
の境界が穴であるかどうかを判定
説明
例
多角形の穴の判別
1 つの固体領域と 1 つの穴をもつ多角形を作成し、どの領域が穴であるかを判別します。
t = 0.05:0.5:2*pi; x1 = cos(t); y1 = sin(t); x2 = 0.5*cos(t); y2 = 0.5*sin(t); polyin = polyshape({x1,x2},{y1,y2})
polyin = polyshape with properties: Vertices: [27x2 double] NumRegions: 1 NumHoles: 1

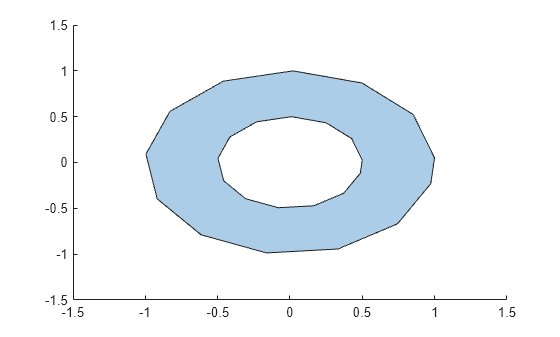

plot(polyin)
TF = ishole(polyin)
TF = 2x1 logical array
0
1
境界を 1 つずつクエリするには、境界インデックスを 2 番目の引数として使用します。
TF = ishole(polyin,2)
TF = logical
1
入力引数
polyin
— 入力 polyshape
スカラー
入力 polyshape
。スカラーとして指定します。
データ型: polyshape
I
— 境界インデックス
スカラー整数 | 整数のベクトル
境界インデックス。スカラー整数または整数のベクトルとして指定します。I
の各要素は、入力 polyshape
の 1 つの境界に対応します。
データ型: double
| single
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
拡張機能
C/C++ コード生成
MATLAB® Coder™ を使用して C および C++ コードを生成します。
使用上の注意事項および制限事項:
コード生成用に動的メモリ割り当てを有効にしなければなりません。
名前と値のペアはコンパイル時の定数でなければなりません。
バージョン履歴
R2017b で導入
